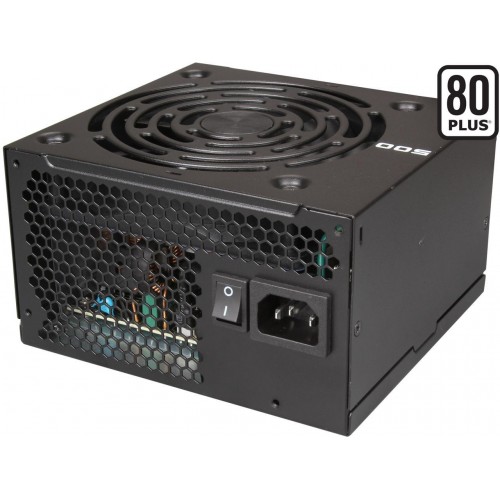

EVGA 500 W1 100-W1-0500-KR 80+ WHITE 500W Power Supply
EVGA 500W 80 PLUS Certified Active PFC Power Supply
When building on a budget, the EVGA 500W 80 PLUS is a great choice at a low cost. Supporting 40A on a single +12V rail provides more options without having to reduce your component requirements. Save space with the 500W's compact design, well-placed power switch and fully sleeved cables. The 500W offers the connections and protections needed for basic system builds. With a standard three-year warranty and ultra quiet fan design the 500W will be a great asset for your next build on a budget.
FEATURES
- Exceptional three-year warranty and unparalleled EVGA customer support
- 80 PLUS Certified, with up to 80% efficiency under typical loads
- High Amperage single-rail design for maximum power and efficiency
- Quiet and intelligent auto fan for near-silent operation
- Heavy-duty power protections provide peace of mind during operation
Continuous Power
Trust EVGA to label all of our power supplies in Continuous Power, the steady power a PSU can generate continuously, rather than the amount delivered at its short-lived peak.
Single 12V Rail
A single 12V rail offers the best power output, rail stability and compatibility with the latest hardware.
Energy Efficient
See the difference with top-quality 80 PLUS certified power supplies by EVGA to offer highly efficient, clean power to all products and devices.
GALLERY
SPECIFICATIONS
Heavy-Duty Protection, Including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
| AC Input | 100 ~ 240VAC | ||||
| DC Output | +5V | +3.3V | +12V | -12V | +5Vsb |
| MAX Output | 20A | 24A | 40A | 0.3A | 3A |
| Combined | 120W | 480W | 3.6W | 15W | |
| Output Power | 500W @ 122°F (50°C) | ||||
Connectors:
- 1 x 24-Pin ATX
- 1 x 4 + 4-Pin EPS12V
- 2 x 6 + 2-Pin PCI-E
- 6 x SATA
- 3 x Molex
| Cable Length | |
|---|---|
| ATX Cable | 1 x 21.66" (550mm) |
| EPS Cable | 1 x 23.66" (600mm) |
| PCIE Cable | 1 x 21.66" (550mm), 26.33" (670mm) |
| SATA Cable | 2 x 17.75" (450mm), 22.5" (570mm), 27" (690mm) |
| Four-Pin Peripheral Cable | 1 x 17.75" (450mm), 22.5" (570mm), 27" (690mm) (f) |
| Floppy Cable | 1 x 4.75 (120mm) |
| AC Power | 1 x 47.25" (1200mm) (m) |
WHAT'S IN THE BOX
EVGA 500 W1 100-W1-0500-KR 80+ WHITE 500W Power Supply
- Product Code: EVGA 500 W1 100-W1-0500-KR 80+ WHITE 500W Power Supply
- SKU: 10210
- Live availability: Check
-
$65.49
