Description

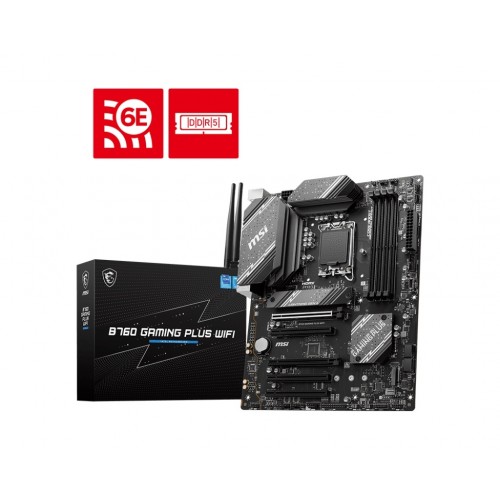

MSI Motherboard B760GPWIFI B760 GAMING PLUS WIFI B760 Socket LGA 1700 Max128GB DDR5 ATX Retail

B760 GAMING PLUS WIFI
• Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• High Quality PCB: 6-layer PCB made by 2oz thickened copper
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

CHIPSET
INTEL B760

	CPU SUPPORT Supports 12th/13th Gen Intel Core^TM Processors, Pentium Gold and Celeron Processors LGA 1700

	MEMORY 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 6800+ MHz 1DPC 2R Max speed up to 6400+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory

MEMORY
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

	ONBOARD GRAPHICS 1x HDMI^TM Support HDMI^TM 2.1 with HDR, maximum resolution of 4K 60Hz¹ 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz¹ ¹Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

	EXPANSION SLOT 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

	STORAGE 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G ¹SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

	RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

	USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear)

	LAN Realtek RTL8125BG 2.5G LAN

	WIRELESS / BLUETOOTH Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz¹ (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA ¹ Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11. ² Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

WIRELESS / BLUETOOTH
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz¹ (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

¹ Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
² Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

	AUDIO Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

	INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports

INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

	LED FEATURE 4x EZ Debug LED

	BACK PANEL PORTS Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI^TM USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT

	OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit

	Item Dimension (L inchxW inchxH inch) 14 x 11 x 3 Weight 5 lbs Warranty Information 3 Years
