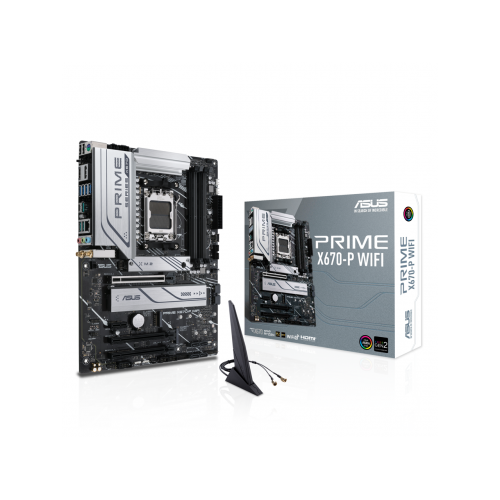

ASUS PRIME X670-P WIFI w/ DDR5, PCIe 5.0, Three M.2, 2.5G LAN, Wi-fi 6, Bluetooth v5.2

Specifications

Make and Model	Asus PRIME X670-P WIFI Motherboard
Part Number	PRIME X670-P WIFI
Color	Black w/ Gray Trim
CPU	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.
Chipset	AMD X670
Memory	4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics	1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots	AMD Ryzen™ 7000 Series Desktop Processors  1 x PCIe 4.0 x16 slot (supports x16 mode)   AMD X670 Chipset  2 x PCIe 4.0 x16 slots (support x4 mode)   1 x PCIe 3.0 x1 slot**  * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.  ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
Storage	Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*  AMD Ryzen™ 7000 Series Desktop Processors  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)  AMD X670 Chipset  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)  6 x SATA 6Gb/s ports** *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. **Performance may vary depending on the SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support site.
Ethernet	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
USB	Rear USB (Total 10 ports)  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)  3 x USB 3.2 Gen 2 ports (3 x Type-A)  4 x USB 3.2 Gen 1 ports (4 x Type-A)  2 x USB 2.0 ports (2 x Type-A)   Front USB (Total 9 ports)  1 x USB 3.2 Gen 1 connector (supports USB Type-C®)   2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports  2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking  - Supports up to 24-Bit/192 kHz playback  Audio Features   - Audio Shielding  - Premium audio capacitors  - Dedicated audio PCB layers  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)  3 x USB 3.2 Gen 2 ports (3 x Type-A)  4 x USB 3.2 Gen 1 ports (4 x Type-A)  2 x USB 2.0 ports (2 x Type-A)   1 x DisplayPort  1 x HDMI® port 1 x Wi-Fi Module  1 x Realtek 2.5Gb Ethernet port  3 x Audio jacks   1 x BIOS FlashBack™ button   1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related   1 x 4-pin CPU Fan header  1 x 4-pin CPU OPT Fan header  1 x 4-pin AIO Pump header  3 x 4-pin Chassis Fan headers  Power related   1 x 24-pin Main Power connector  1 x 8-pin +12V Power connector  1 x 4-pin +12V Power connector  Storage related   3 x M.2 slots (Key M)   6 x SATA 6Gb/s ports  USB   1 x USB 3.2 Gen 1 connector (supports USB Type-C®)   2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports  2 x USB 2.0 headers support additional 4 USB 2.0 ports  Miscellaneous  3 x Addressable Gen 2 headers  2 x Aura RGB headers  1 x Clear CMOS header  1 x COM Port header  1 x Front Panel Audio header (AAFP)  1 x S/PDIF Out header  1 x SPI TPM header (14-1pin)  1 x 20-5 pin System Panel header  1 x Thunderbolt™ header
Special Features	ASUS 5X PROTECTION III  - DIGI+ VRM (- Digital power design with DrMOS)  - ESD Guards   - LANGuard  - Overvoltage Protection  - Safeslot Core+  - Stainless-Steel Back I/O  ASUS Q-Design   - M.2 Q-Latch  - Q-DIMM  - Q-LED Core  - Q-Slot  ASUS Thermal Solution  - M.2 heatsink  - VRM heatsink design  ASUS EZ DIY  - BIOS FlashBack™ button  - BIOS FlashBack™ LED  - ProCool  Aura Sync  - Aura RGB headers  - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software  Armoury Crate  - Aura Creator  - Aura Sync  - Fan Xpert 4 with AI Cooling II  - Power Saving  AI Suite 3  - TurboV EVO  - DIGI+ VRM  - PC Cleaner  ASUS CPU-Z  Norton Anti-virus software (Free Trial version)   WinRAR  UEFI BIOS  ASUS EZ DIY   - ASUS CrashFree BIOS 3   - ASUS EZ Flash 3   - ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
